Himax Application / Use Case – Dashcam Parking Mode
Overview
今時今日幾乎每個人的車子都會安裝行車紀錄器，而行車紀錄器在發展一段時間之后，從早期僅配備低品質傳感器且外型笨重，到今天的智能、聯網、輕巧甚至做到隱藏式，已經有明顯進步。行車紀錄器全時錄影，最主要目的是在不幸發生交通事故時，萬一沒有事發畫面有時候難以追究肇事責任；然而另一個被關注的功能，則是在車子熄火後，行車紀錄器還能運行在低功耗狀況下來監控四周環境，在被其他人或物或車輛碰傷時，可留下有利影象證據，即為停車監控或駐車哨兵模式。
Himax WE1 Plus做為主處理器的偕同處理器，在停車熄火模式下，可實現特定事件預錄來完善功能更齊全的行車紀錄器終端應用。
Person Detection(人員偵測)，能判斷人類與非人類；在物體接近時，傳感器偵測到移動且WE1 Plus判定物體為人，才會喚醒主行車紀錄處理器開始錄影，避免浪費內存保存空間和電池電量的消耗。而當G-Sensor偵測到觸碰，除了鎖定當時錄影文件避免被復蓋或人為破壞，主處理器亦被啟動，WE1 Plus送出事發前8秒的畫面，還原完整事故始末與細節。

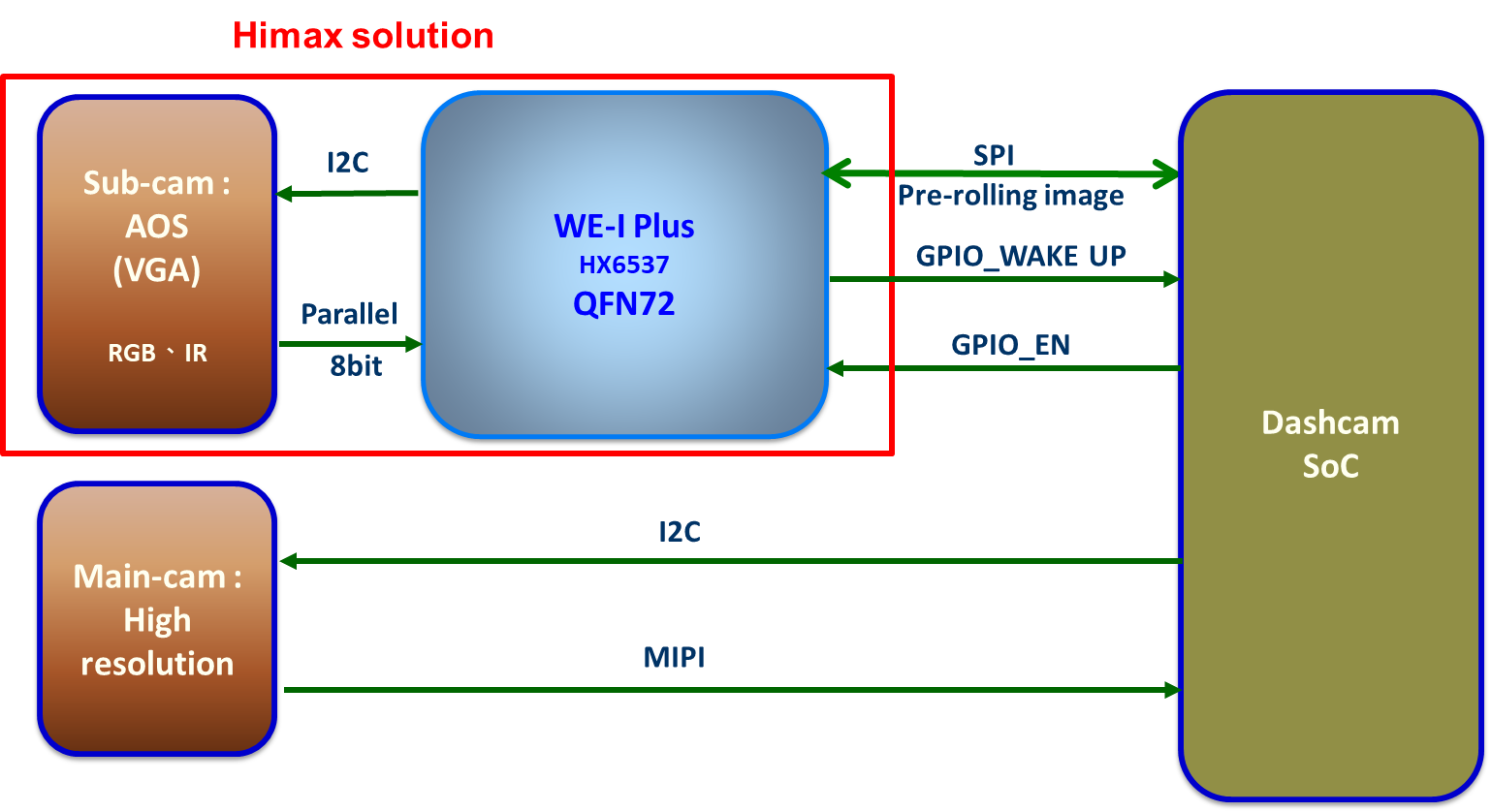

Block Diagram
Tools and Software
Contact HX_WE1-Solution@himax.com.tw for more information.
Resources
| Smart Sensing | Link | Supplier |
|---|---|---|
| Document | http://yaoshancha.cn/product-brief/HX6537.39.40-A_product_brief.pdf http://yaoshancha.cn/products/cmos-image-sensor/always-on-vision-sensors/hm01b0/ http://yaoshancha.cn/products/cmos-image-sensor/always-on-vision-sensors/hm0360/ | Himax |
| Algo Provider | Himax AiZip | |
| Reference Design | Email to: HX_WE1-Solution@himax.com.tw | Himax |
| Evaluation board | https://www.sparkfun.com/products/17256 | Himax |
| Available On Line | https://www.digikey.com/en/products/result?s=N4IgTCBcDaIBIEsC2BDAHiAugXyA | Himax |
* Aizip, Inc., develops AI models for IoT applications. Based in Silicon Valley, Aizip provides design services with superior performance, quick turnaround time, and excellent ROI. Their models can be used in a wide range of applications for an intelligent, automated, and connected world.
